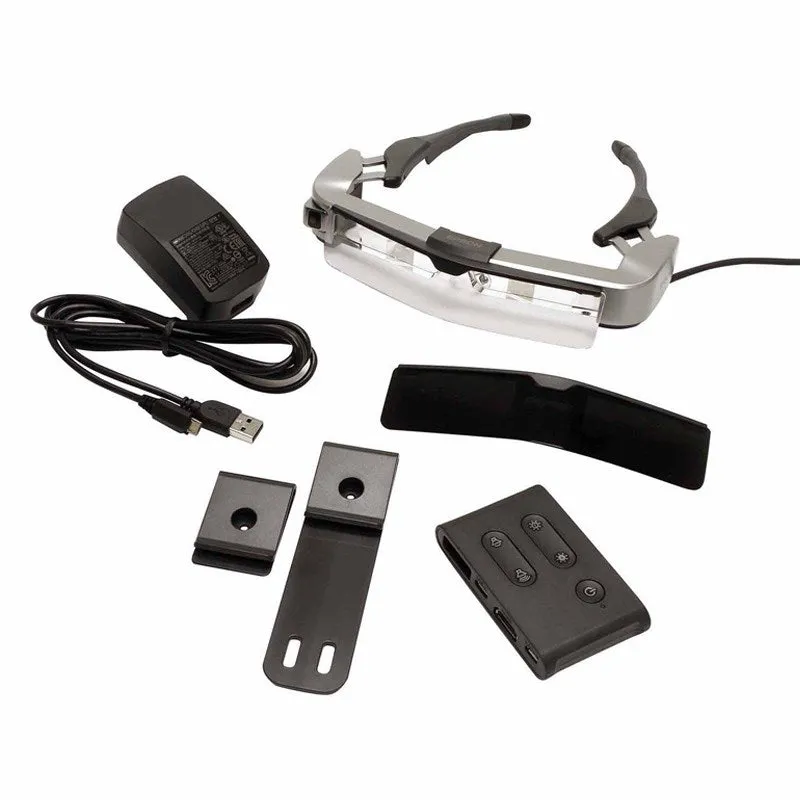

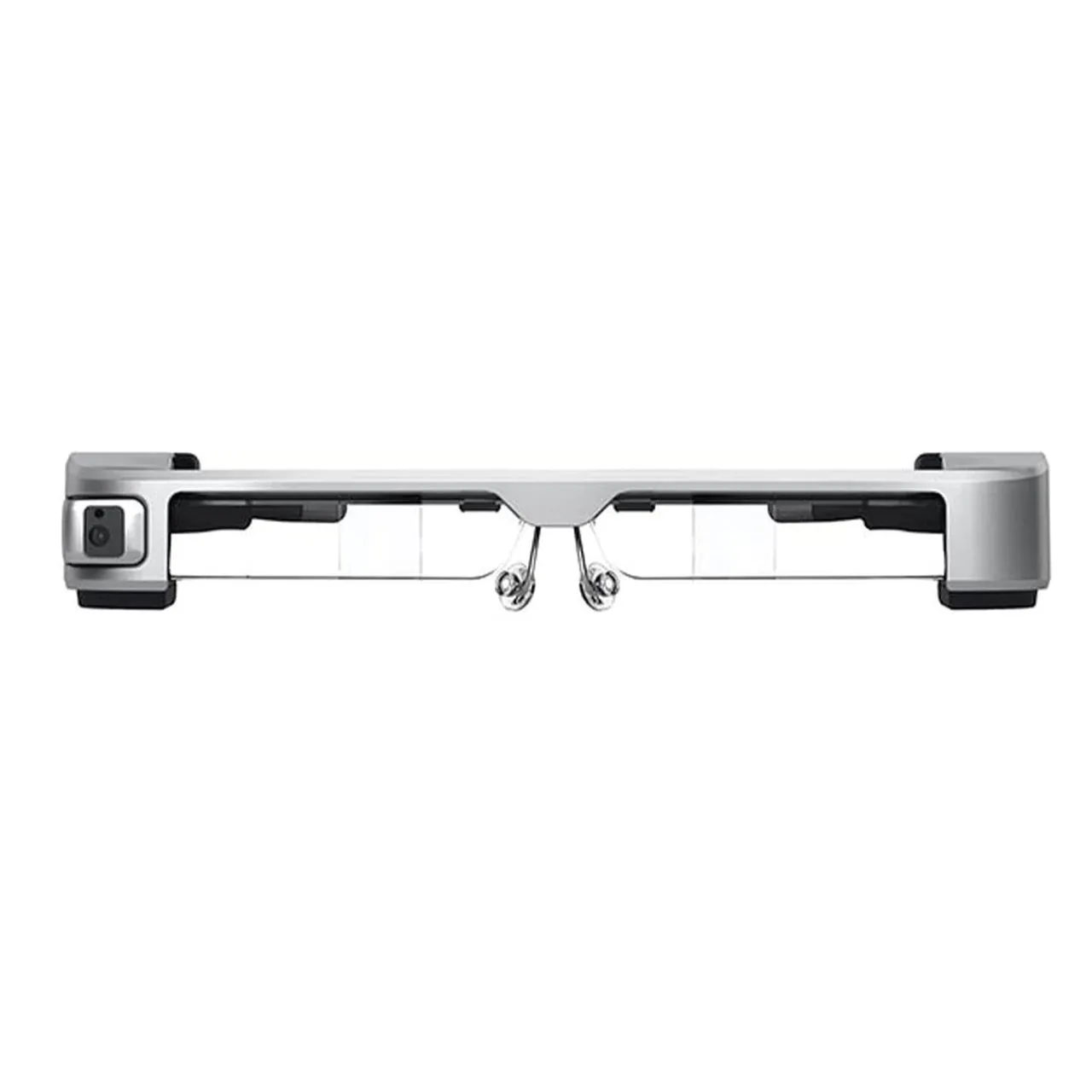

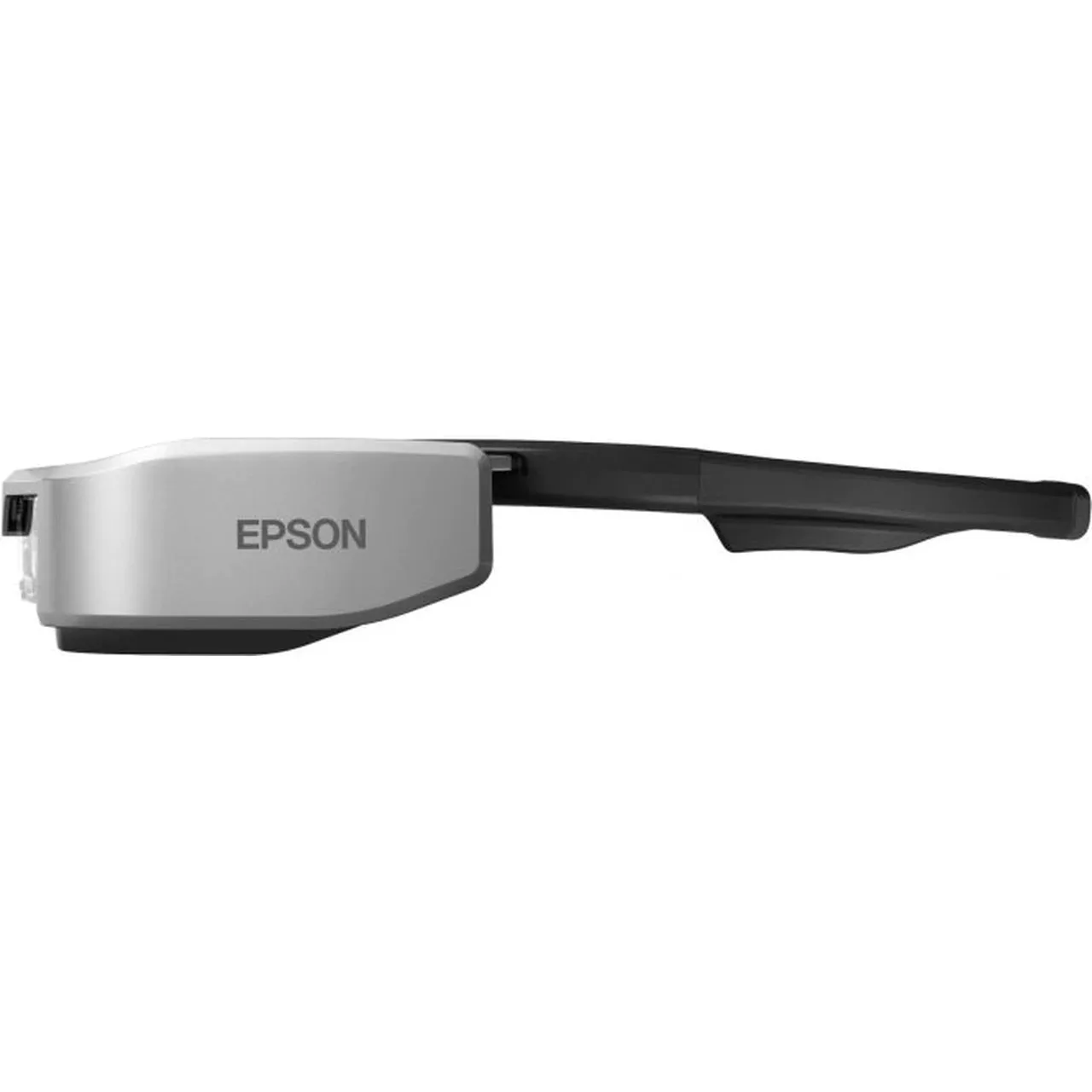

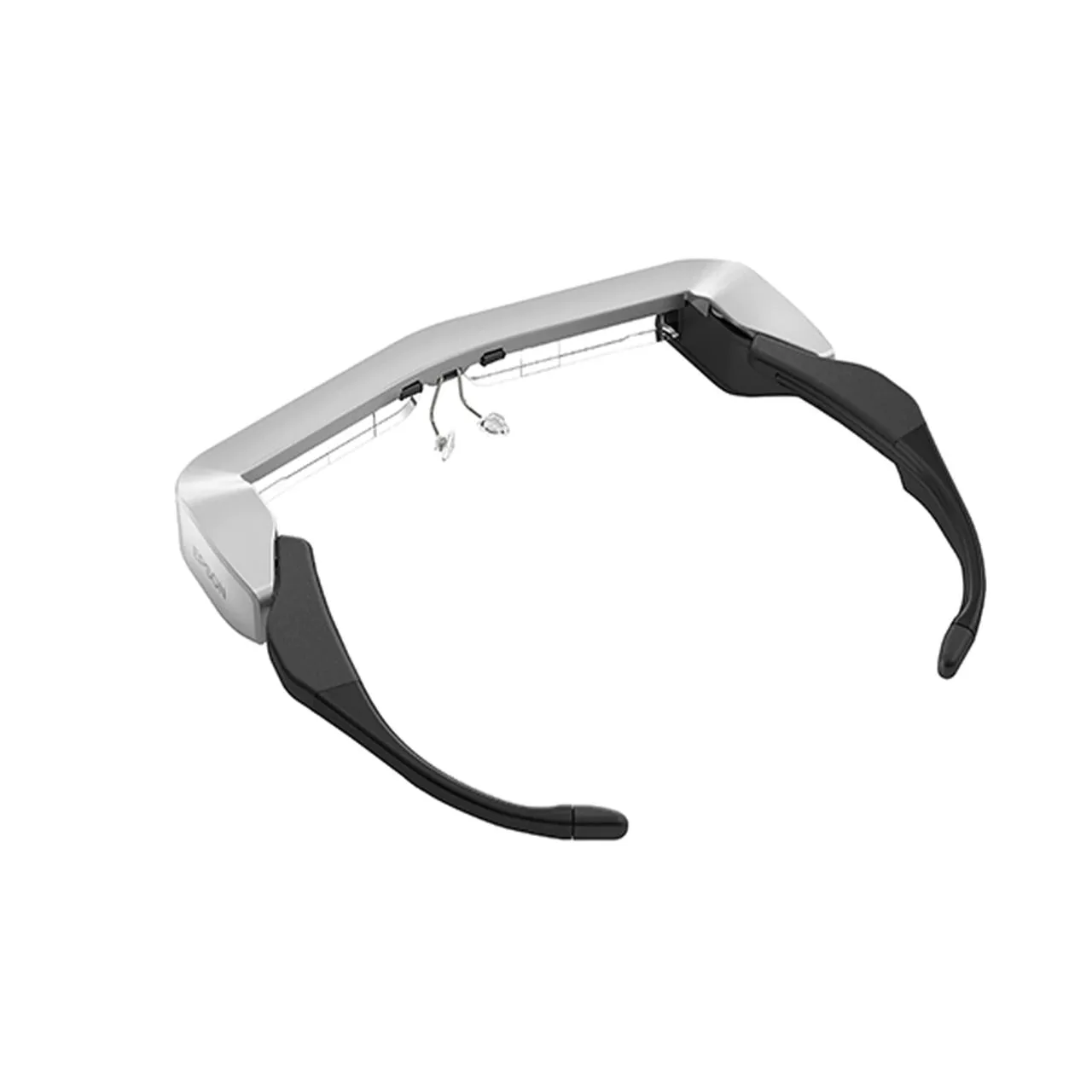

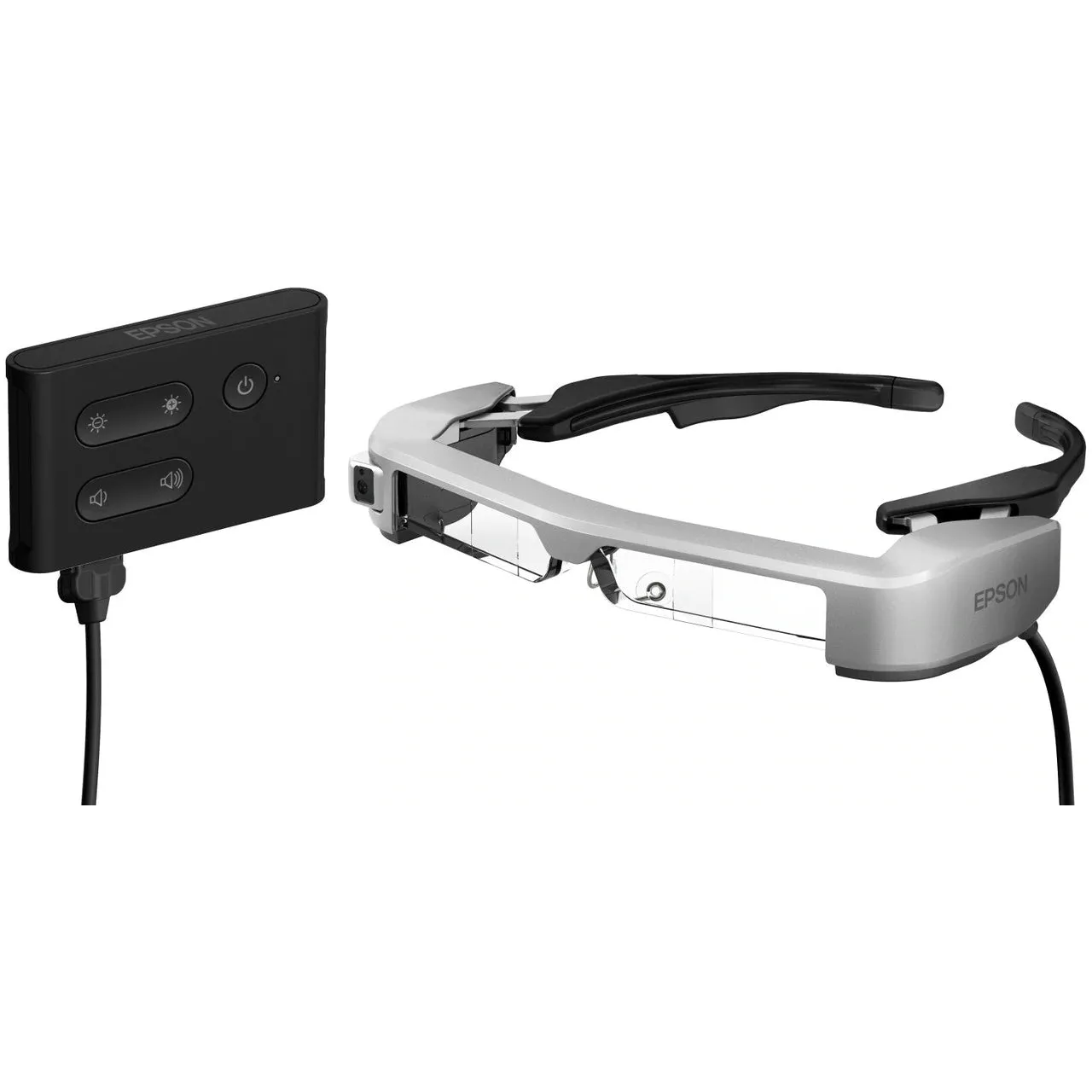

BT-35E Moverio Smart Glasses / Augmented Reality Glasses

Key Features

Si-OLED display – For more natural colour and brighter images
Durable and flexible design – Designed to be worn easily by a wide range of users, utilizing adjustable arms to maximise comfort
HDMI and USB-C connectivity – Deliver a low-latency experience utilizing USB 2.0, USB C and HDMI inputs
Amazing image quality – HD display (720p) & high brightness ensure a crisp image and vivid colours with a 16:9 aspect ratio
Ideal for commercial applications – Such as healthcare, engineering, commercial drone piloting and more
Crisp Sound Quality – Using 3.5mm sound output to maxise immersion when in use
Capture the moment – 5 Megapixel camera to ensure high quality imagery on the go
State of the art sensory technology – Allowing for an accurate physical and visual experience, containing features such as Compass, Gyroscpe, Accelerometer and more

Moverio - Smart Eyewear

The Epson Moverio journey began almost 30 years ago, in 1989, with the production of our first Epson 3LCD projector. Since then, Epson has released three self-contained, binocular augmented reality (AR) systems – from the BT-100 in 2011 to the BT-200 in 2014 to the BT-2000 in 2015 to the BT-300 in 2017.

With the BT-35E, users can focus on the task at hand with these hands-free Si-OLED-powered binocular see-through smart glasses that can deliver a range of content at low latency from a range of devices using HDMI or USB-C connectivity.

The design and wearability is key, and the BT-35E is designed with commercial applications in mind. Its durable build and features designed for comfort mean it can be repeatedly worn by lots of users, fitting comfortably for long periods of time, no matter their head shape and size, or if they wear glasses.

Work. Play. Visualize. Experience MOVERIO today.

Specifications

OPTICAL
Display Size	0.43 inch wide panel (16:9)
Pixel Number	921,600 pixels (1280 RGB x 720)
Refresh Rate	30 Hz
Field of View	23 degrees (diagonal)
Screen Size (Projected Distance)	40 inch at 2.5 m - 320 inch at 20 m
Colour Reproduction	24 bit-colour (16.77 million colours)
SENSORS
Compass	Yes
Gyroscope	Yes
Ambient Light Sensor	Yes
Accelerometer	Yes
Data Transfer Method	USB Protocol - USB 2.0 Device Class for Sensor - HID Sensor
CONNECTIVITY
Data Transfer	USB Protocol - USB 2.0
Data Type	Sensor Data, Camera Data, Headset API control, Firmware Update
Video Input	HDMI TypeA, USB Type-C
CAMERA
Pixel Number	5 Mega Pixels
Resolution and Flame Rate	2592x1944 (5M) @15Hz, 1920x1080@30Hz/15Hz, 1280x720@60Hz/30Hz/15Hz, 640x480@60Hz
Focus Type	Pan focus
Focus Length	60cm to ∞
Field of View	Horizontal - 67.7 degree Vertical - 53.2 degree Diagonal - 79.3 degree
Function	Automatic adjustment for exposure, white balance
Data Transfer Method	USB Protocol - USB 2.0 Device Class for Audio - UAC Device Class for Video - UVC 1.1
Supported File Format	Motion-jpeg
USER INTERFACE
Display ON/OFF (Standby mode)	Standby Button
Display ON/OFF (AV Mute)	Standby Button
Brightness control	Brightness Key ( / -)
Volume control	Volume Key ( / -)
Auto brightness control	Brightness Key( )and Volume Key( ) at the same time
2D/3D	Brightness Key(-)and Volume Key(-) at the same time
Mode setting	Power Button and Brightness Key( ) at the same time; Mode 1 - Normal mode(Power save mode ON) Mode 2 - Power save mode OFF/Standby button (enabled) Mode 3 - Power save mode OFF/ Standby button (disabled)
SOUND INPUT/OUTPUT
Audio Jack	3.5 φ 4 pole mini jack (Earphone with microphone CTIA standard compatible)
Supported Earphone	Play Frequency Band - 20Hz - 20k Hz (recommended) Impedance - Over 16Ω Output (maximum voltage) - Under 27mV 3.0mW
Supported Mic	Impedance - 2.2kΩ@1kHz Directionality - Omnidirectional
OTHER
Supported 3D Format	Side by Side format
LED Indicator	Orange/Blue/White
OSD Function	No Signal, Brightness Setting, Volume Setting, 2D/3Dmode Setting, Auto Brightness Setting, Mode Setting
Firmware Update	Supported (Require to conect with PC by USB type-C)
Supported the OS for host device (USB Type Connection)	Windows10/Mac (* Depends on supported status of USB Type-C on connected device)
Supported the OS for host device (USB Type Connection)	Android 7.0 or later ( USB Type-C connection and custom SDK are required)
GENERAL
Operating Temperature	[5] °C - [35] °C, [20]% to [80] % Humidity
Storage Temperature	[-10] °C - [60] °C, [10]% to [90]% Humidity
Power Supply Voltage I/F Box	USB Micro-B - 5.0V, 1.5A (DC Input) USB Type-C - USB Type-C [email protected]
Power Supply Voltage AC Adapter	Input - 100 - 240 V AC /- 10%, 50 / 60 Hz with micro USB cable Output - 5.0V, 2A
Power Consumption	Max 6.5W(Standby 0.3W)
Water Proof	IPx2 (Headset only)
Dimensions: Headset	193.5 mm x 176 mm x 30 mm (without shade)
Dimensions: IF Box	85 mm x 52 mm x 15 mm
Weight: Headset	approx.119g (without shade, harness)
Weight: IF Box	approx.45g (without Belt clip and Cable retainer)
